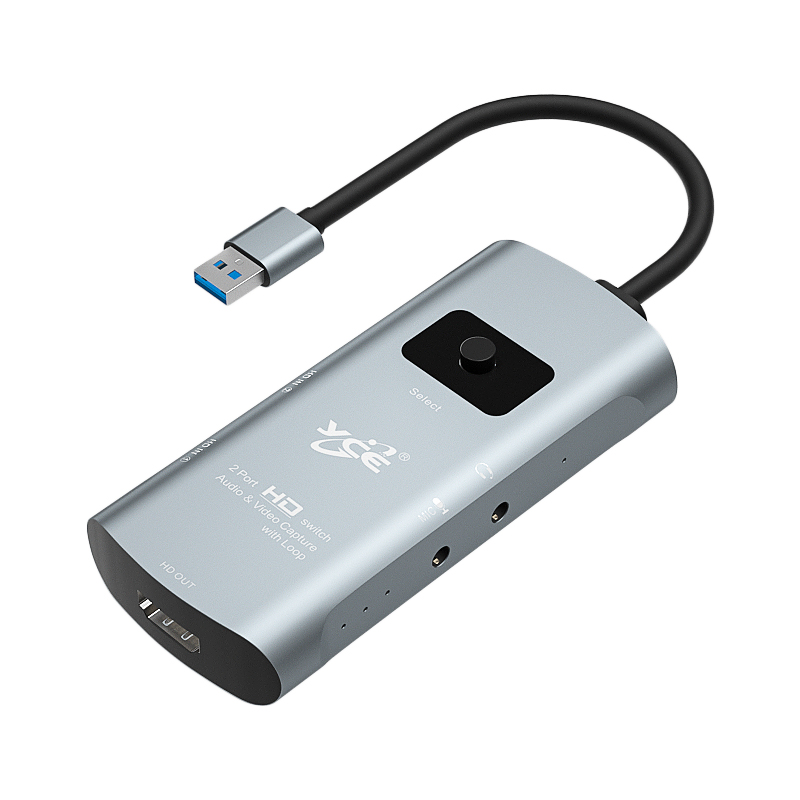

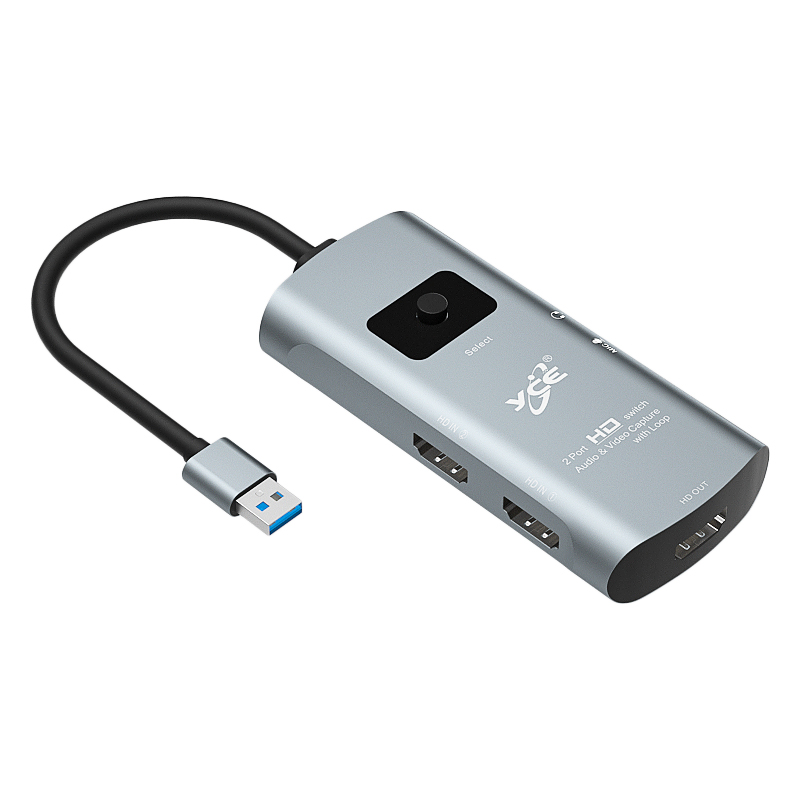

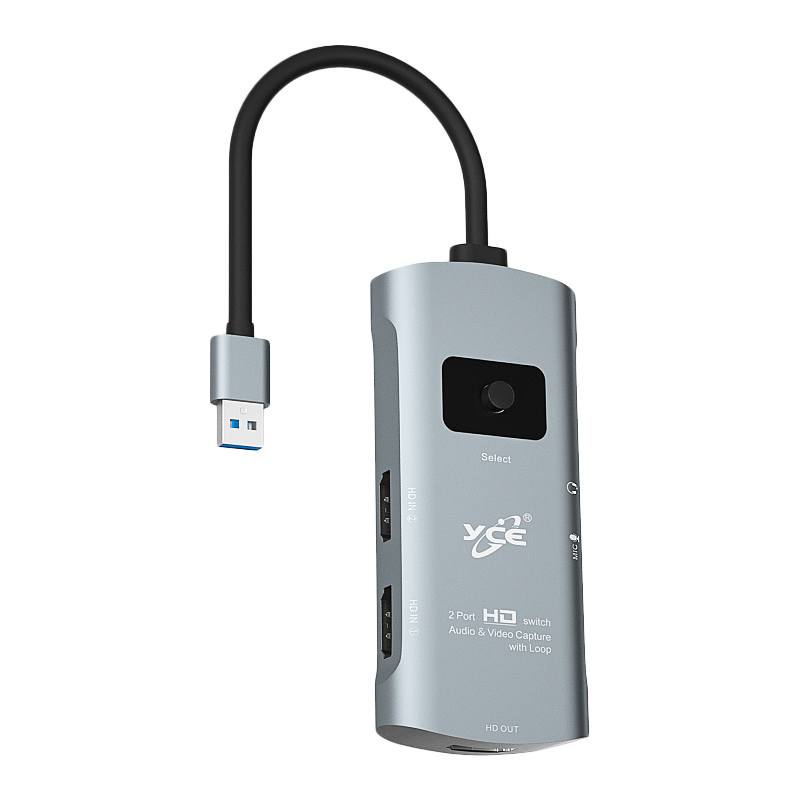

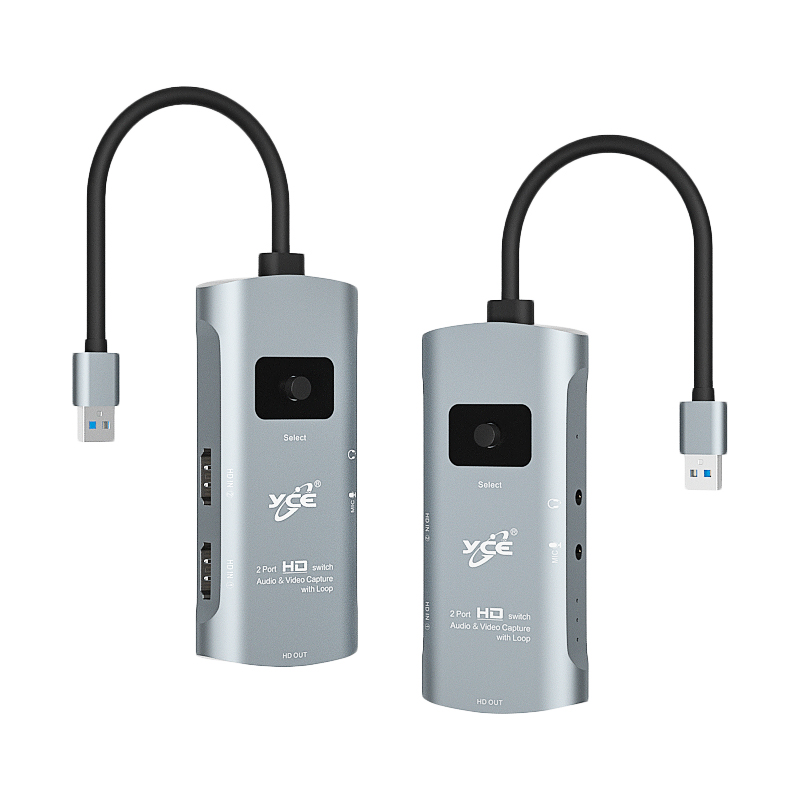

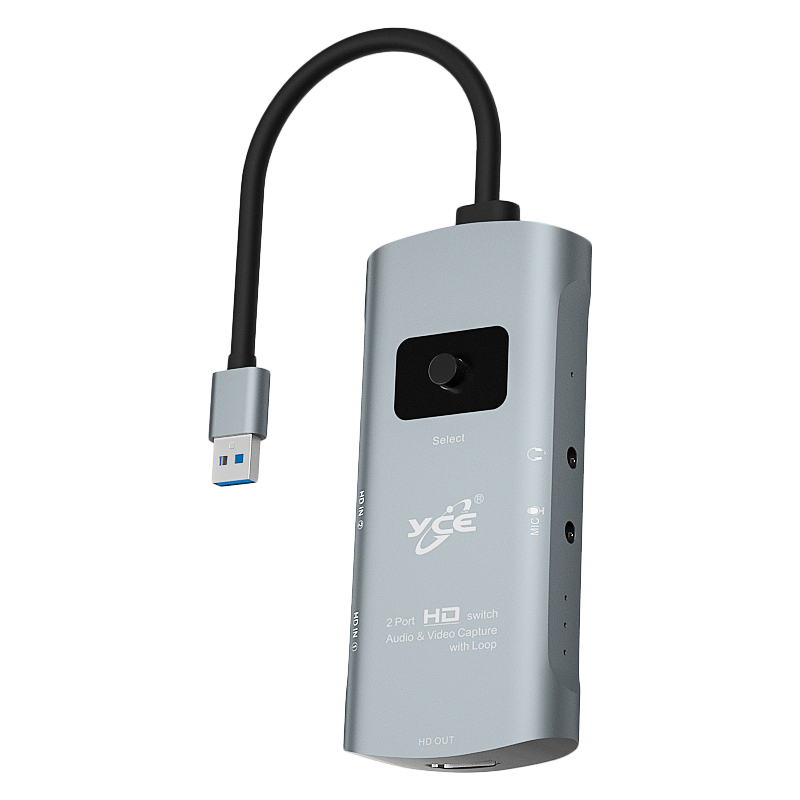

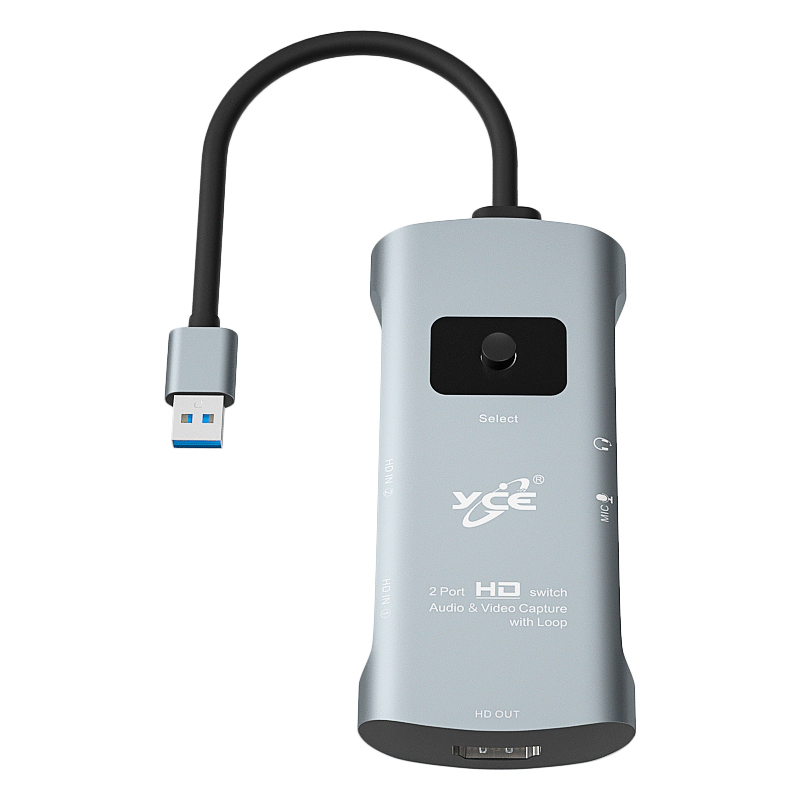

Product name: HD/F(A)+ HD/F(B)+MIC TO HD/F+Audio+USB/M audio/video capture switch
Product Brand: Neutral (OEM/ODM available)
Product model: Z54
Product color: gray (other colors can be customized)
Product weight: 90.7g (gross weight)
Product size: 230*46.9*16.5mm
Product packaging: box set + carton
Product material: using aluminum alloy CNC technology, the surface sand surface is oxidized, the materials used are environmentally friendly; it has good anti-interference and heat dissipation capabilities.
Product features: This product is a portable HD high-definition video capture card, which can simultaneously capture HD audio and video signals and transmit them to mobile phones and computers for preview, editing, storage and other multi-functional applications.
Product application: Connect the HD input end of the capture card to the signal source, the HD output end to the display port, and the Mic end to the microphone, which can realize high-definition acquisition, video recording, video live broadcast, teaching recording, medical imaging, game live broadcast, and video live broadcast , Recording high-definition video of the camera, etc. The two HD signal sources can be switched freely, which solves the problem of switching between different signal sources. PS: When this product is connected to an active speaker in the audio port, if you unplug the USB terminal first, noise may be generated, which is a normal phenomenon.
Features:
1. The product complies with USB video UVC specification and USB audio UAC specification;
2. Support operating systems such as Windows, Android, Linux and MacOS;
3. Support most acquisition software, such as VLC, OBS, Amcap, etc.;
4. Support HD local loop out;
5. Support microphone input, audio port supports headset integration;
Note: When the microphone and headset integrated headset are used at the same time, the integrated headset end has no microphone function.
6. Support free switching of two HD signal sources;
7. Support microphone audio and HD audio overlay collection;
8. Input terminal: HD/F maximum input can support 4K, 8/10/12 bit color depth input format
9. Output terminal: USB/M supports up to 1080P; MJPEG output mode
10. High-definition capture, strong compatibility and smooth picture;
11. No need for external power supply, portable;
12. Operating environment: -20℃ to 65℃, relative humidity is 5% to 95%;
