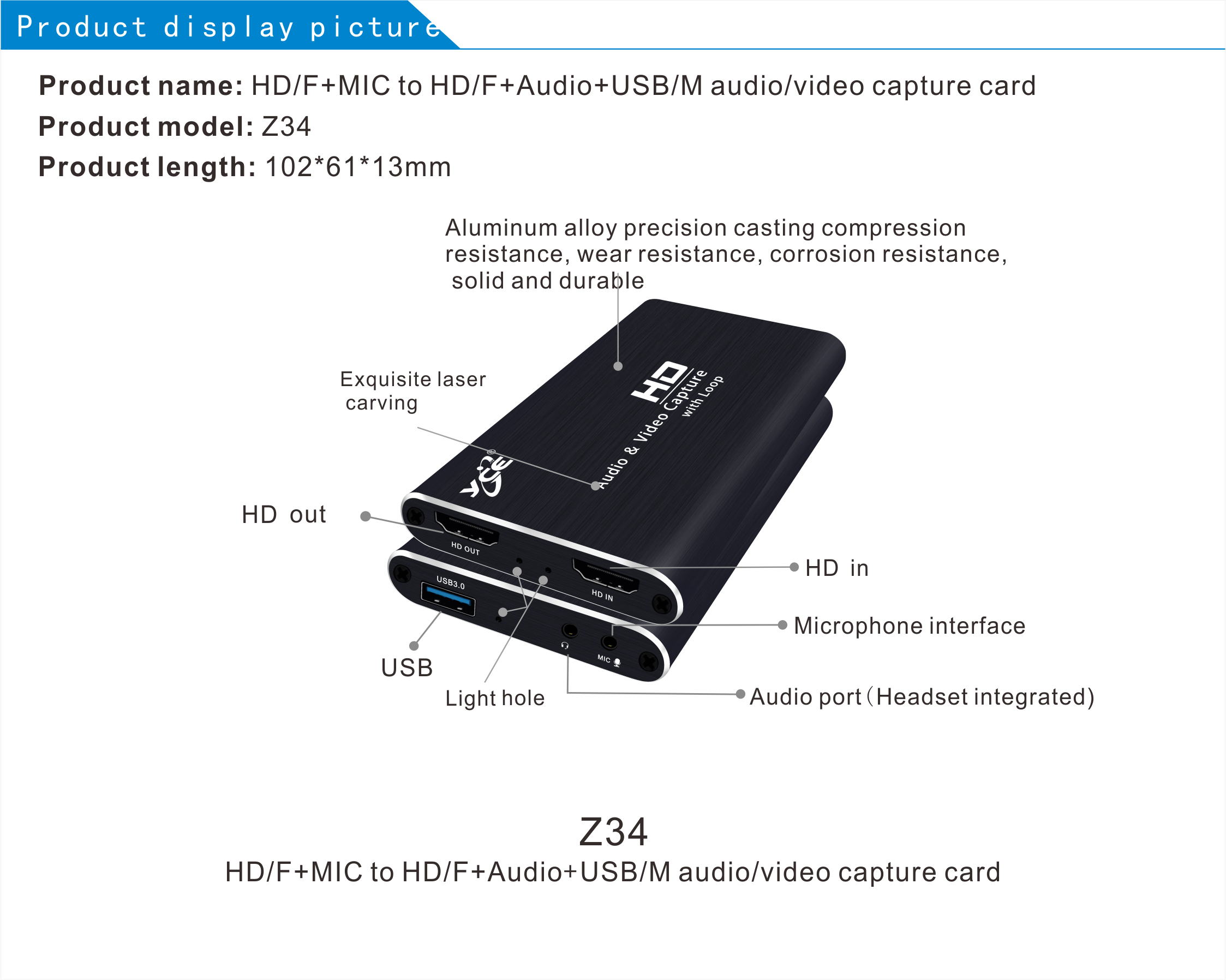

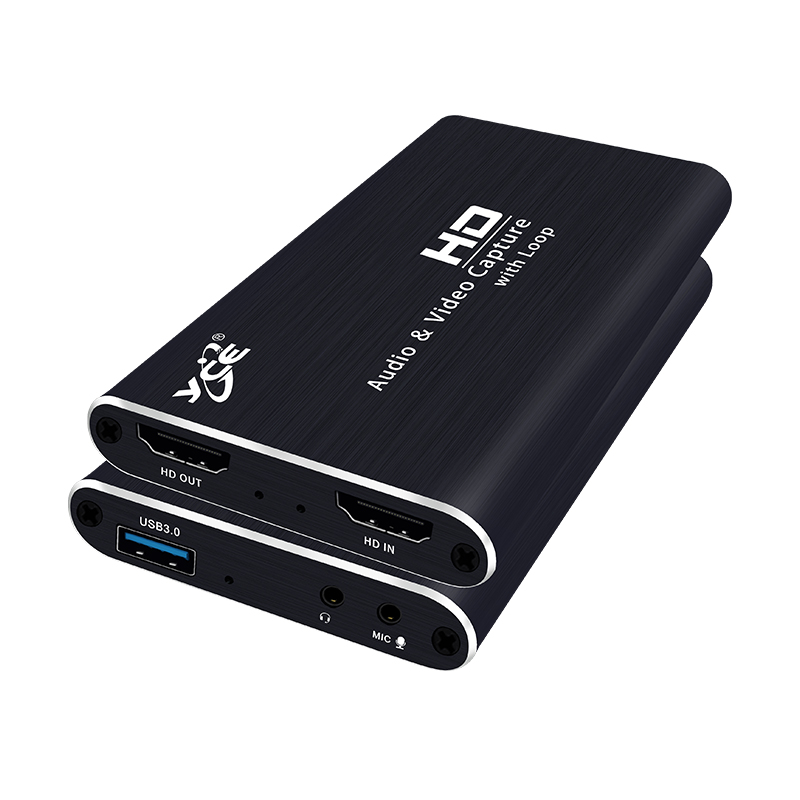

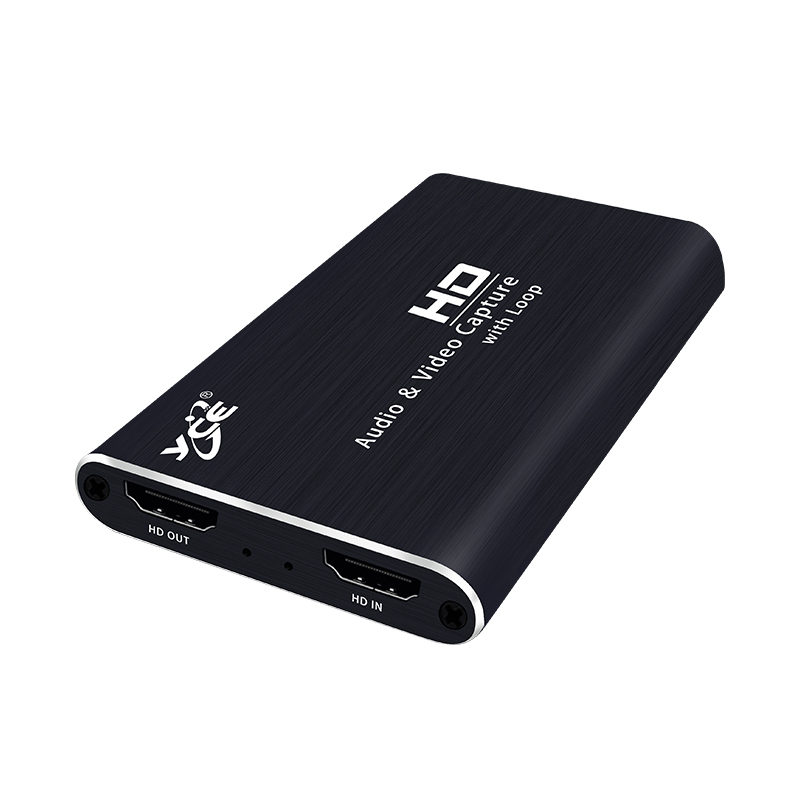

Product name: HD/F+MIC TO HD/F+Audio+ USB audio/video capture card
Product Brand: Neutral (OEM/ODM available)
Product model: Z34
Product color: black (other colors can be customized)
Product weight: 148g

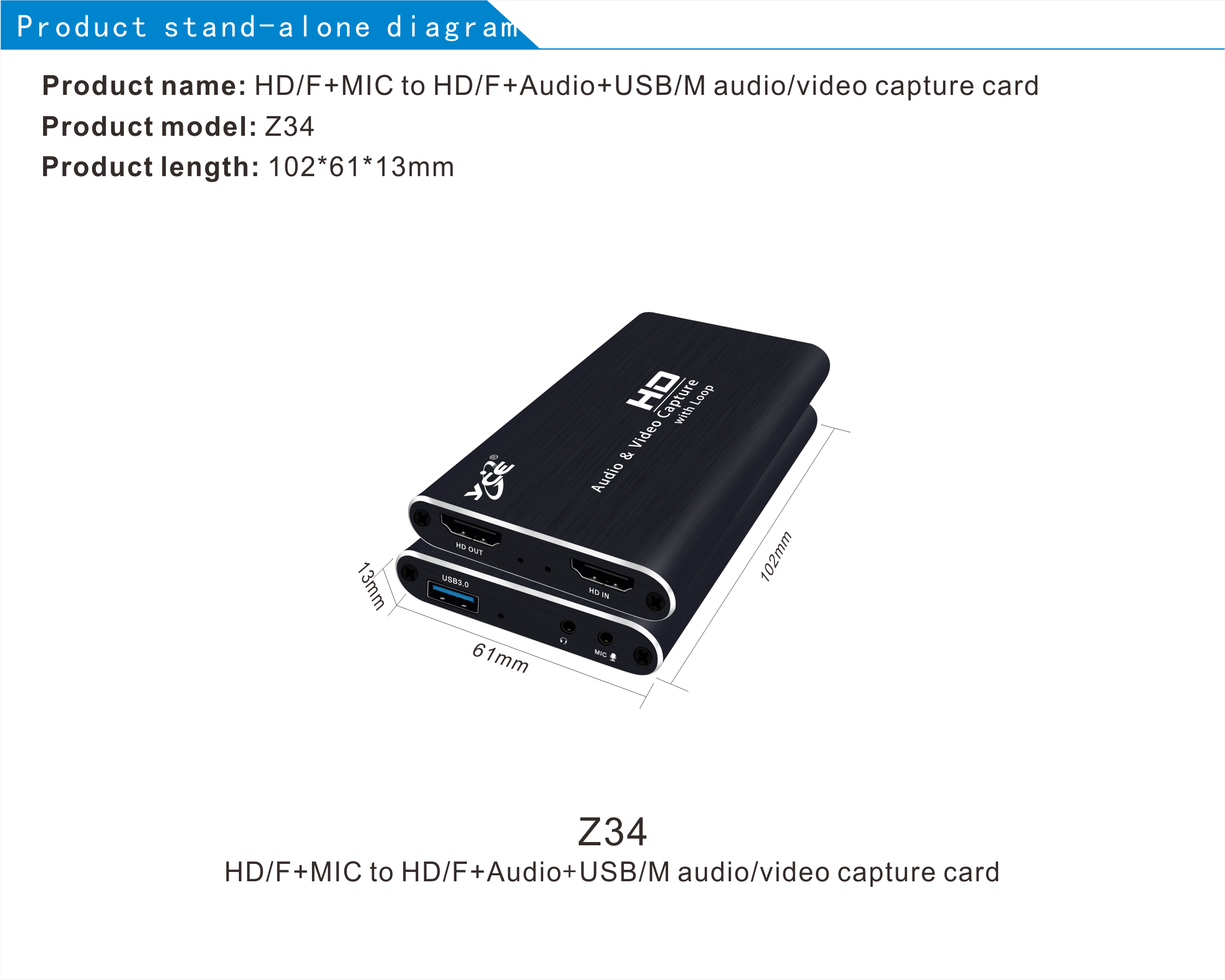

Product size: 102.5*60*13mm
Product packaging: box set + carton
Product material: using aluminum alloy CNC technology, surface sand surface oxidation, high-end environmental protection; with good anti-interference and heat dissipation capabilities.
Product function: This product is a portable HD high-definition video capture card, which can simultaneously capture HD audio and video signals and transmit them to the hand
Preview, edit, save and other multi-functional applications on the computer and computer.

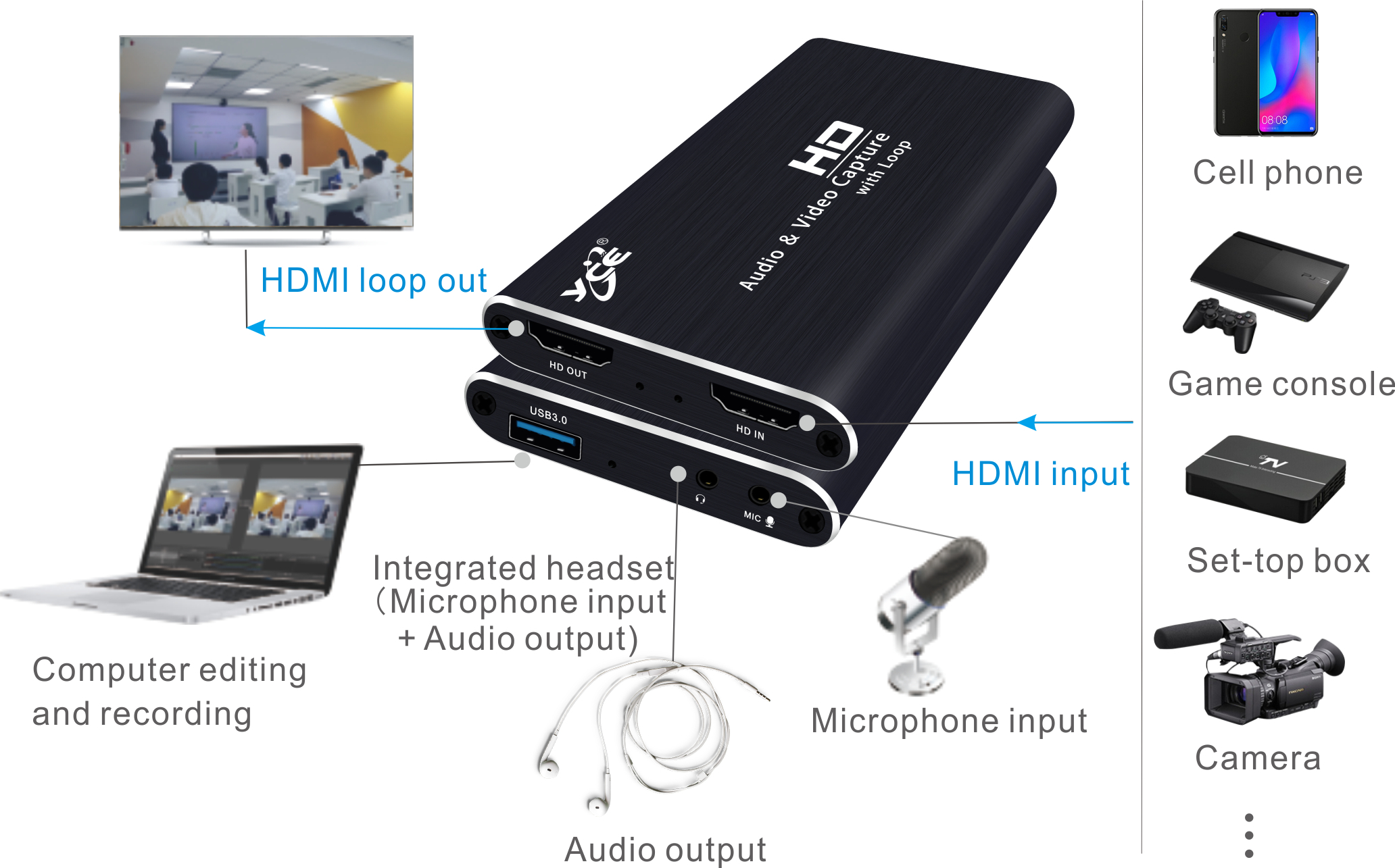

Product application: connect the HD input end of the capture card to the signal source, the HD output end to the display port, and the MIC end to the microphone
Connection to achieve high-definition acquisition, video recording, video live broadcast, teaching recording, medical imaging, game live broadcast, video live broadcast, and high-definition recording camera
Video etc. PS: When this product is connected to an active speaker through the audio port, if you unplug the USB port first, noise may be generated, which is a normal phenomenon.
Product features: 1. The product complies with USB video UVC specifications and USB audio UAC specifications; 2. Supports operating systems such as Windows, Android, Linux and MacOS; 3. Supports most capture software, such as VLC, OBS, Amcap, etc.; 4. Support HD local loop out;
5. Support microphone input, audio port supports headset integration;
Note: When the microphone and headset integrated headset are used at the same time, the integrated headset end has no microphone function.
6. Support microphone audio and HD audio superposition collection; 7. Input: HD/F maximum input can support 4K, 8/10/12 bit color depth input format
8. Output terminal: USB/F supports up to 1080P; MJPEG output mode
9. High-definition capture, strong compatibility, smooth picture without stuttering, no delay; 10. No need for external power supply, small size and portable;
11. Operating environment: -20℃ to 65℃, relative humidity 5% to 95%;
